Y50EX系列圆形电毗连器
产品简介
该系列电毗连器切合GJB598A-96标准,参照美军标MIL-C-26482 标准,毗连方法为卡口式快速毗连和疏散,具有体积小、密度高、耐情形好、可靠性高等优点。普遍应用于航空、航天、航海、野战、战车、工交电力、邮电通讯、铁路指挥系统等电气及电子装备的线路毗连,并可凭证用于需求改装成滤波毗连器。

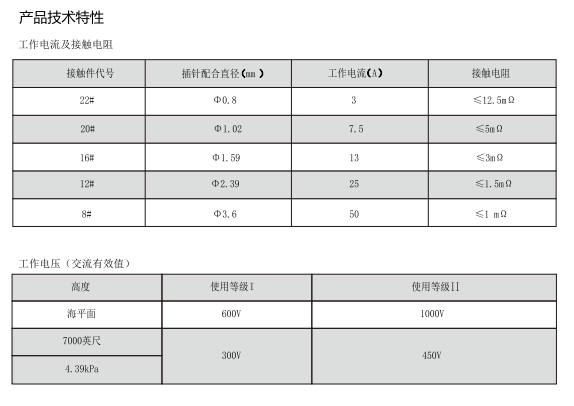

产品参数
● 事情高度:海拔 3000m
● 冲 击:加速率 980m/s²
● 振动:频率10Hz-2000Hz,加速率196m/s²
● 抗电温度:交流1500V
● 机械寿命:插拔 500次
本产品为FT-BH系列圆形电毗连器,若有需要,请联系尊龙凯时人生就博。
